3kW
Starter PackageSmall homes — essential power
- Inverter
- 3 kW hybrid
- Battery
- 5.12 kWh
- Panels
- 3–4 kWp
Complete systemK17,999
See the packageBNBM Energy, powered by Deye
Home solar systems
Four complete packages — hybrid inverter, lithium battery and panels. Supplied, delivered and installed by BNBM (PNG) Limited.
Powering progress. Sustaining our future.Works with Huawei FusionSolar · Deye · Kool Energy
6kW
Family PackageModern families — more comfort
- Inverter
- 6 kW hybrid
- Battery
- 12 kWh
- Panels
- 6–8 kWp
Complete systemK31,999
See the package
8kW
Comfort PlusMore power, more possibilities
- Inverter
- 8 kW hybrid
- Battery
- 16 kWh
- Panels
- 8–10 kWp
Complete systemK43,999
See the package
12kW
Premium PackageBigger homes and business
- Inverter
- 12 kW hybrid
- Battery
- 24 kWh (2 × 12)
- Panels
- 12–16 kWp
Complete systemK66,999
See the packagePackage price as advertised. Ask your nearest branch for a written quote covering your site, delivery and installation.
How it works
A hybrid system, not a generator
Solar runs the house by day, the battery covers the night and the outage, and the grid is the backstop.
- Panels make the powerPanels on the roof feed the hybrid inverter through two MPPT trackers.
- The house gets it firstThe inverter runs the house first, charges the battery with what is left, and draws from the grid only when it has to.
- The battery covers the outageWhen the grid drops, the inverter switches the backup circuit over to the battery. Lights, fridge, fans and wifi stay on.
- Nights run off the batteryThe house runs off stored energy until the battery reaches its reserve, then goes back to the grid.
- You watch it from your phoneGeneration, consumption and battery level over Bluetooth and the app.
What each package runs
Typical household loads
Actual capacity depends on appliance ratings and simultaneous usage — not all at the same time.
| Package | Inverter | Battery | Panels | Complete system |
|---|---|---|---|---|
| 3 kW Starter Package | 3 kW hybrid | 5.12 kWh | 3–4 kWp | K17,999 |
| 6 kW Family Package | 6 kW hybrid | 12 kWh | 6–8 kWp | K31,999 |
| 8 kW Comfort Plus | 8 kW hybrid | 16 kWh | 8–10 kWp | K43,999 |
| 12 kW Premium Package | 12 kW hybrid | 24 kWh (2 × 12) | 12–16 kWp | K66,999 |
Package price as advertised. Ask your nearest branch for a written quote covering your site, delivery and installation.
The hardware
Deye hybrid inverter
Manufacturer data for the three phase SUN-SG04LP3-AU range. Ask your branch which model is supplied with your package.
| Range | Deye SUN-5K / 6K / 8K / 10K / 12K-SG04LP3-AU, three phase |
|---|---|
| Rated AC output | 5 kW to 12 kW depending on model |
| Peak power, off grid | 2 times rated power for 10 seconds |
| Battery voltage range | 40–60 V, lead-acid or lithium-ion |
| Max charge / discharge current | 120 A to 240 A depending on model |
| Max PV input voltage | 800 V |
| MPPT voltage range | 200–650 V, two MPP trackers |
| Max efficiency | 97.6% (Euro 97.0%, MPPT above 99%) |
| Output distortion | THDi under 3% of nominal power |
| Charge scheduling | Six time periods for battery charging and discharging |
| Generator input | Supported — stores energy from a diesel generator |
| Parallel operation | Up to 10 units, on grid and off grid |
| Retrofit | AC couples to an existing solar system |
| Enclosure | IP65, intelligent air cooling, noise 55 dB or less |
| Operating temperature | −40 °C to +60 °C, derating above 45 °C |
| Monitoring | LCD display, WiFi, RS485, CAN |
| Grid standard | AS/NZS 4777.2 |
| Safety and EMC | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
| Warranty | 10 years |
The hardware
Deye SE-F lithium battery
Manufacturer data for the SE-F series supplied with these packages.
| Range | Deye SE-F5, SE-F5 Plus, SE-F12, SE-F16 |
|---|---|
| Chemistry | LiFePO4 |
| Nominal voltage | 51.2 V |
| Operating voltage | 44.8–57.6 V |
| Nominal energy | 5.12 kWh (100 Ah), 11.8 kWh (230 Ah) or 16 kWh (314 Ah) |
| Depth of discharge | 80% (SE-F5) or 90% (SE-F5 Plus, SE-F12, SE-F16) |
| Cycle life | 6,000 cycles or more at 25 °C, 70% end of life |
| Scalability | Up to 32 units in parallel |
| Operating temperature | Discharge −20 °C to 55 °C |
| Installation | Wall, floor or stack mounted |
| Communication | CAN 2.0, RS485, Bluetooth and app |
| Enclosure | IP21 |
| Certification | UN38.3, MSDS, CE, CB |
| Warranty | 5 years, or 10 years on SE-F5 Plus and as an extension on SE-F12 / SE-F16 |

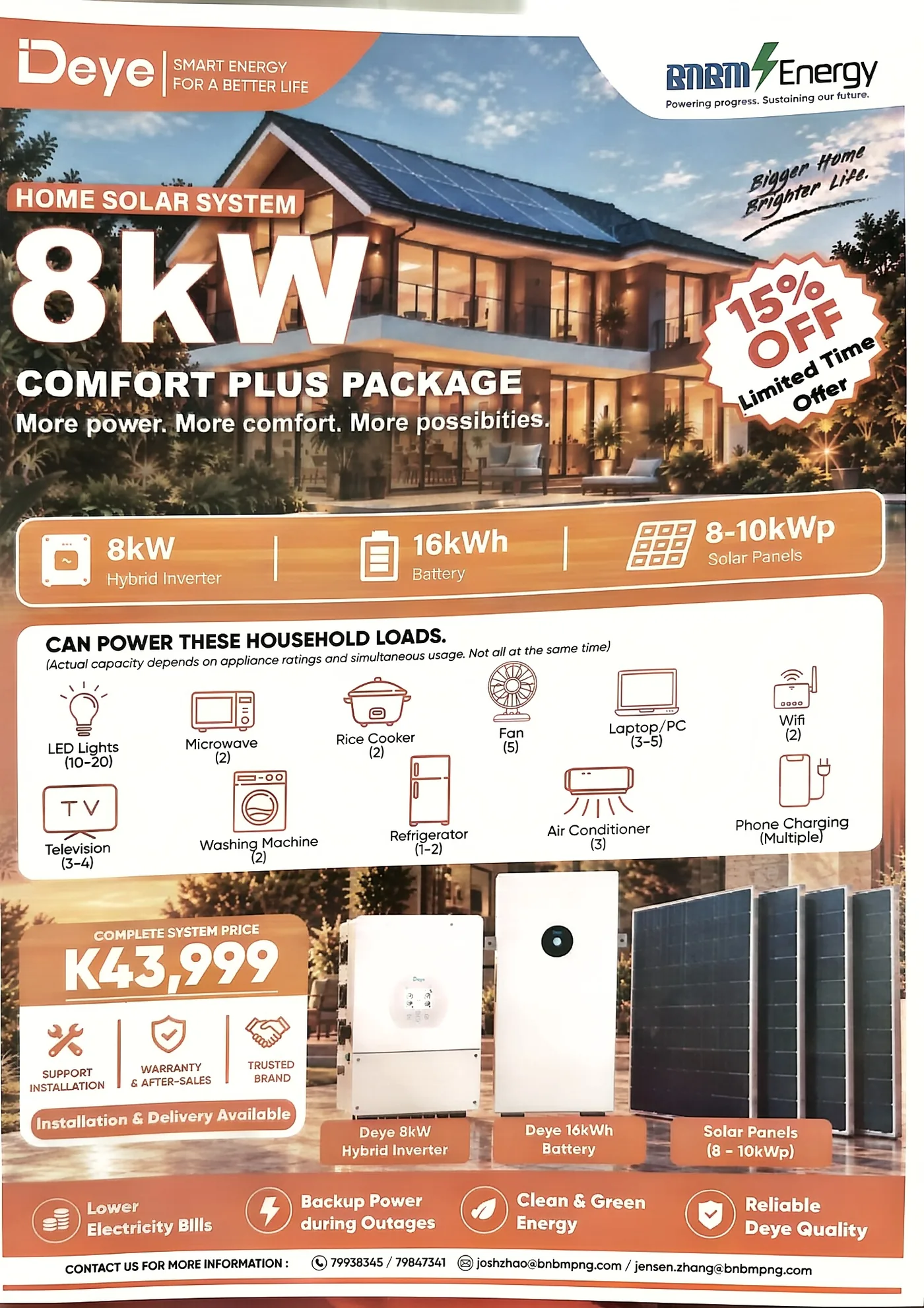

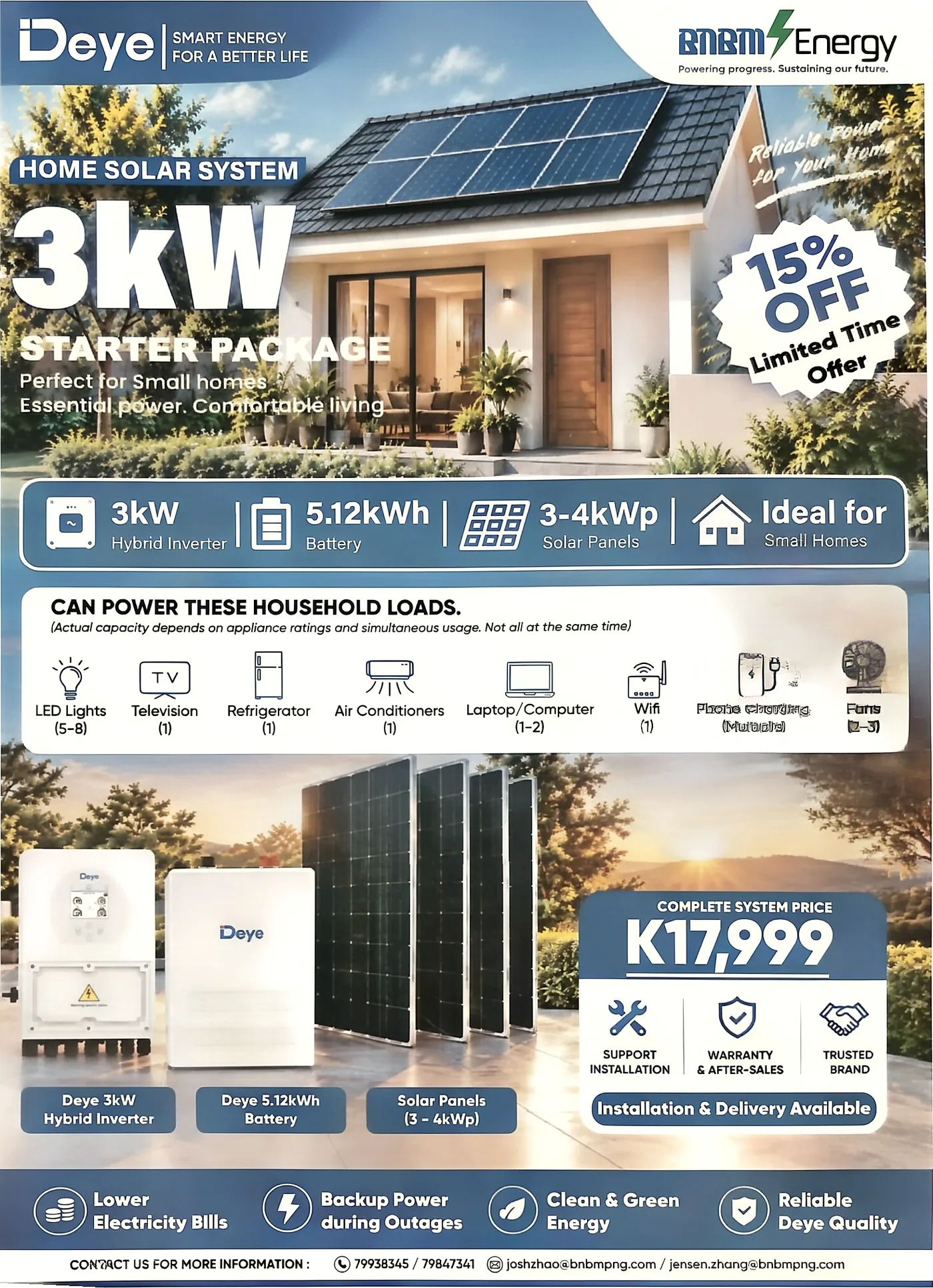

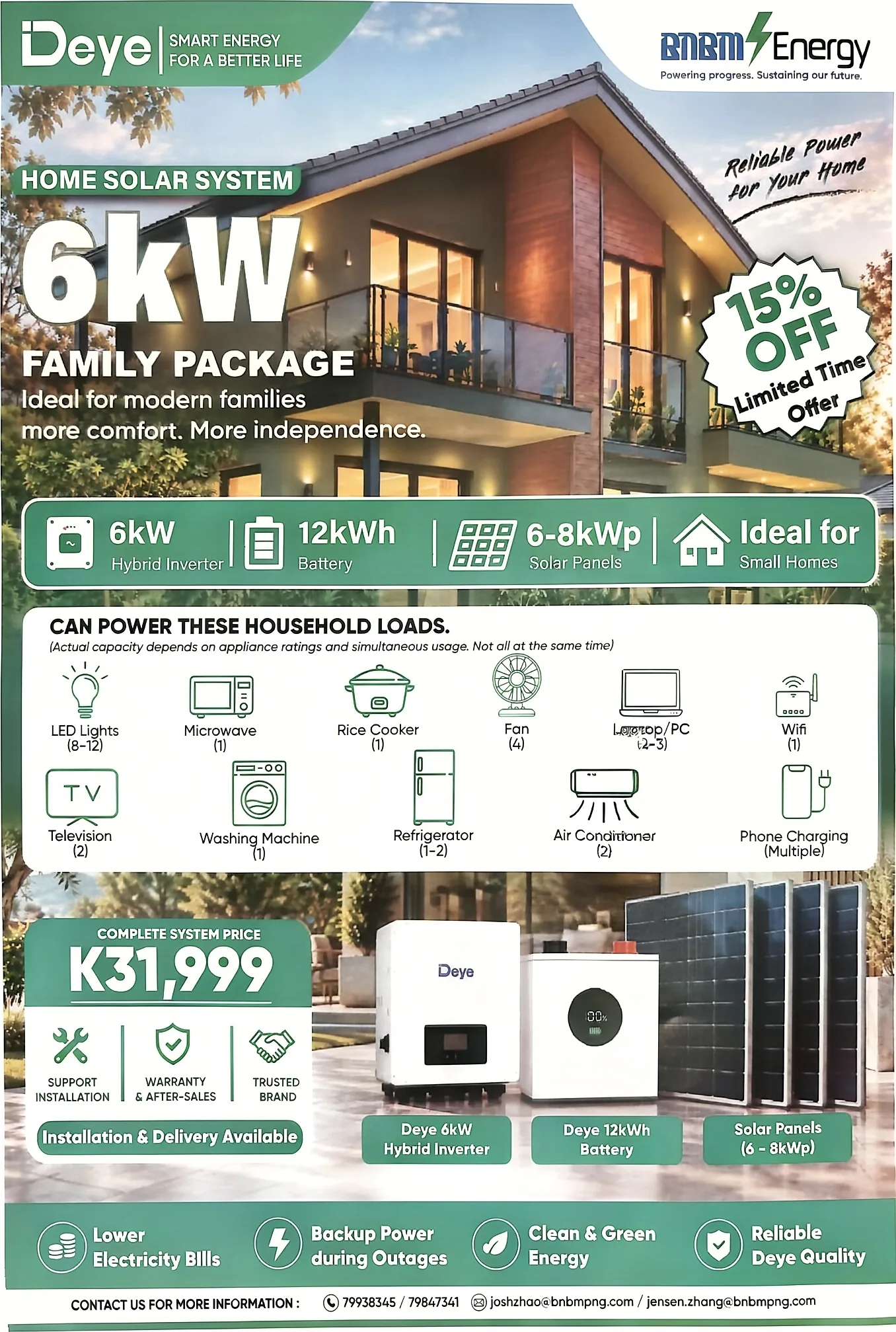

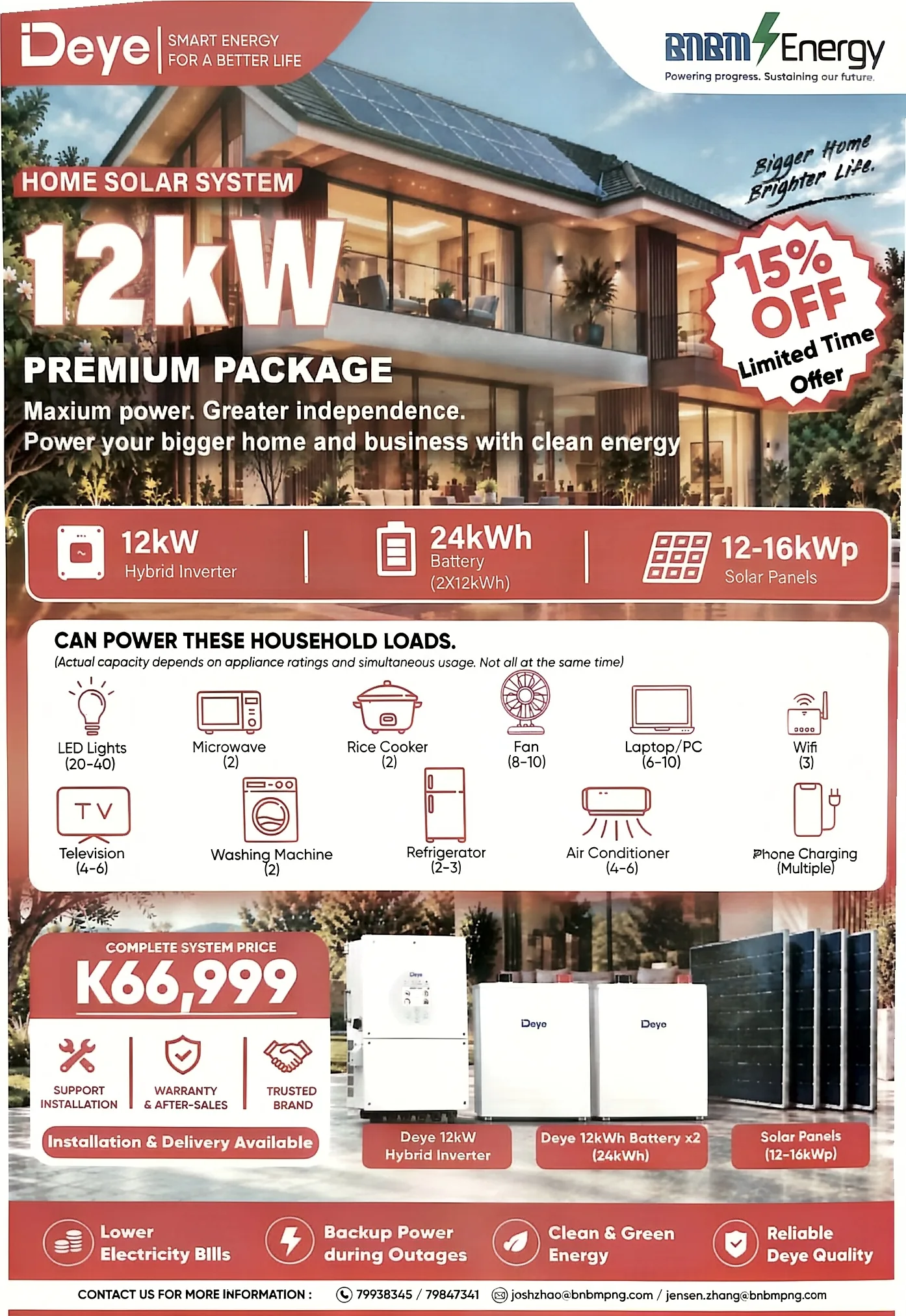

Package sheets
The printed sheet for every package
Tap a sheet to open it full size — every appliance it runs, what is in the box and the complete system price.
Before you order
Good to know
- Site survey first. Roof orientation, roof condition, switchboard and cable runs all change what a system costs to install. We quote after we have seen the site.
- The battery needs a sheltered spot. The enclosure is IP21 — indoors, in a garage or under cover, not exposed to rain.
- Panel count is a range. Panel wattage varies by supply, so a package lists kWp rather than a fixed number of panels.
- Backing up sensitive equipment? A hybrid inverter switches the backup circuit over when the grid drops — it is not a zero-break online UPS. Servers, network switches and medical equipment should stay behind their own UPS, with the solar system upstream of it.
- Installation and delivery are available from any branch and are quoted with the system.
